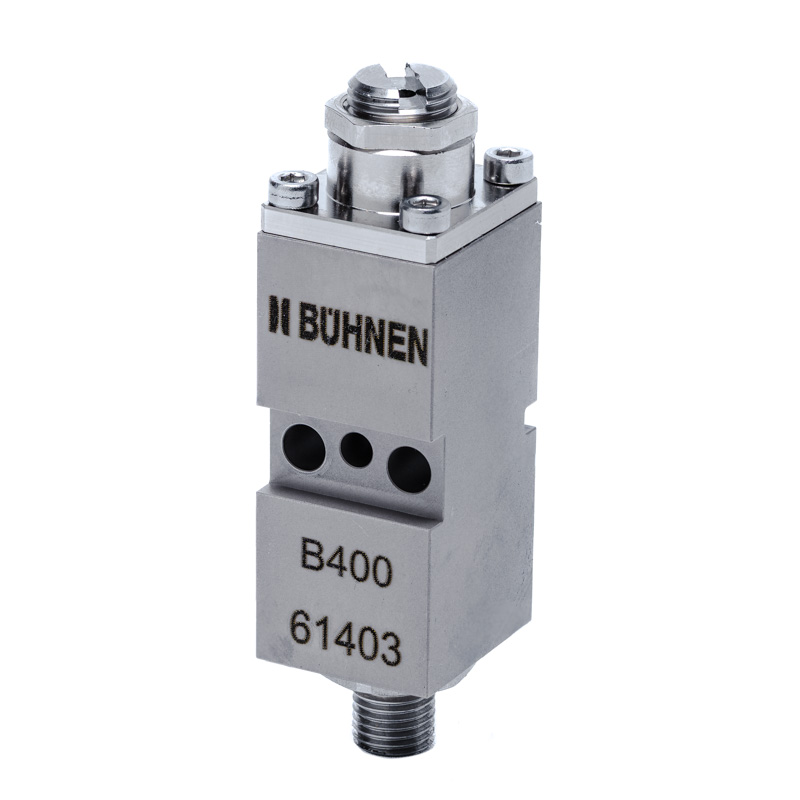

Module B400

Prednosti in značilnosti opreme

The B400 standard module for point and bead application. Available in numerous module variants.

  • Compatible with Nordson H200 / H400 series and SolidBlue S
  • Compatible with Robatech AX100 series
  • Compatible with ITW Dynatec

Tehnični podatki

DITO bueprod_customfields_technik.php

Področja uporabe

123456 TEMPL Monday html/com_virtuemart/productdetails/bueprod_customfields_awgs.php

Opis

The B400 module has short control air paths. This results in rapid opening and very precise closing movement of the piston with the nozzle needle for a clean adhesive application. It is a standard module for dot and bead application.

The modules can be installed in any position. The distance from the application surface depends on the desired application pattern.

The module is delivered with O-rings and two inch-screws. The air and adhesive channels to the applicator body are sealed with the O-rings. The screws are used to attach the module to the head body.

The module is a flange valve. The flange connection diagram is available on request.

Article number Description Remarks Compatible with Reference No.
NKT0106 Module B400 Standardmodul   Nordson Serie H200/H400 276119; 326583
NKT0467 Module B400-FJ With fine adjustment Nordson
NKT1124 Module B400-ZC 0,60 Needle seat module, different diameters available Nordson
NKT0934 Module B550 With milled cut-outs Nordson SolidBlue S
NKT1212 Module B400-HT High temperature up to 250°C Nordson
RKT0331 Module B400-RB   Robatech Serie AX100
DKT0382 Module B-BF   ITW Dynatec
