Hose connection, rigid
Advantages and equipment features
The hose connections are used to connect the melter and the hot melt hose.
- Compatible with Nordson
- Suitable for BÜHNEN
- For SA8 hose
- Different connection angles
Application Areas
Description
The hose connections are used to connect the melter and the hot melt hose.
They are made in one piece and are therefore rigid. The two connections are 9/16“-18 UNF male threads. They are available in different connection angles.
Standard for SA8 hoses, further connections are available from us for many other hoses.
To avoid cold bridges, we recommend using an insulation sleeve. (NKT0423).
| Article number | Description | Remarks | Reference number |
| NKT0181 | Hose connection SA8, straight | G 9/16"-18UNF - G 9/16"-18UNF |
972628 |

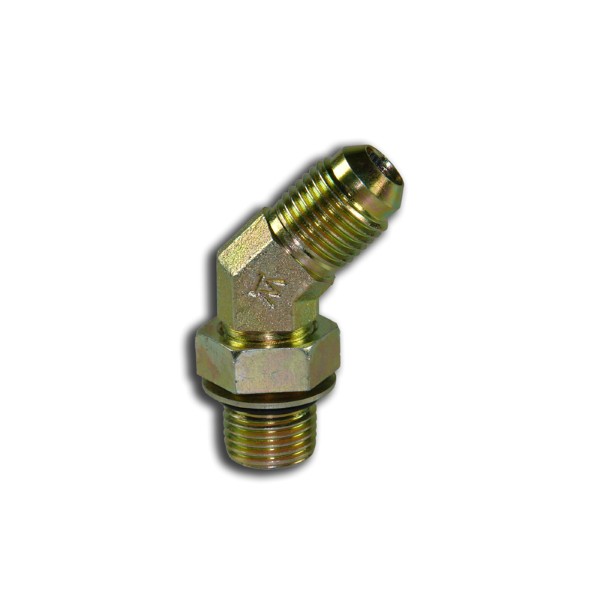

| NKT0182 | Hose connection 45°, rigid | G 9/16"-18UNF - G 9/16"-18UNF |
972454 |
| NKT0184 | Hose connection 90°, rigid | G 9/16"-18UNF - G 9/16"-18UNF |
972200 |
