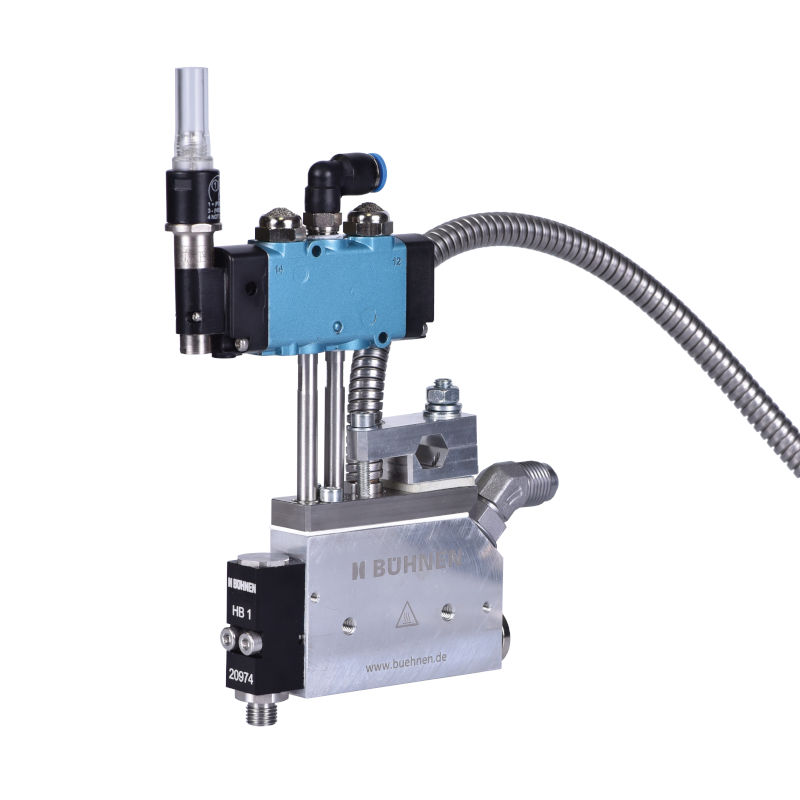

HB 11 Micro application head - Bead

Advantages and equipment features

With its narrow module, the HB 11 is used for particularly fast cycle times. The HB 11 is compatible with Nordson.

  • narrow
  • very fast
  • non-drip
  • one4all

Specifications

DITO bueprod_customfields_technik.php
Heating capacity 100 W
Temperature range 195 °C
Max. Pressure 80 bar
Dimensions 170 x 18 x 130 mm
Nozzle thread UNF 3/8''
Number of Modules 1

Application Areas

123456 TEMPL Monday html/com_virtuemart/productdetails/bueprod_customfields_awgs.php

Description

With its narrow module, the HB 11 is used for particularly fast cycle times. The HB 11 is compatible with Nordson and Robatech.

The application head is delivered without a nozzle.



  • Incl. 24 V solenoid valve
  • Incl. Module HB 1 with UNF 3/8'' thread for use with standard nozzles
  • Compact structural width for tight places: only 18 mm
  • PT100 or Ni120
  • Air-opening / air-closing
  • Head holder for 11 - 15 mm round bars
  • With integrated filter (100 mesh)
  • Hose connection SA 8
  • Optional: Inline filter, M8 plug for solenoid valve, insulation



Downloads


Article number Description Sensor Compatible with
FCH1479 HB 11 Micro application head PT100 -
NKT1590 HB 11 Micro application head Ni120 Nordson
